Sam's Teardrop - AssemblyBack to Sam's Teardrop Page

The exterior walls were framed and insulated so long ago. As of November, 2008 I hadn't gotten much farther. I decided it was time to build some of the pieces to assemble the walls onto the floor/chassis. First steps would be to build the rear bulkhead walls and the front closet wall. I could then buy my interior sheathing (1/8" plywood) and skin these walls at the same time I skin the outside walls.

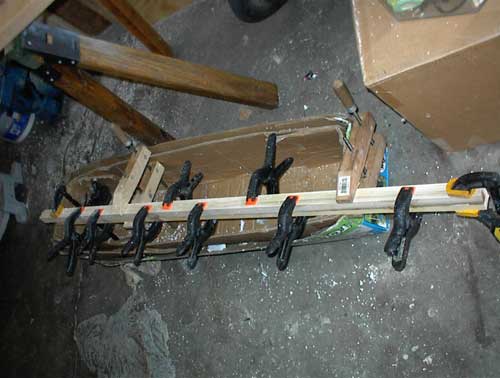

Since finishing the exterior walls I spent a little time building the roof joists, 2x2 inch poplar wood. Here is one of the joists being glued. Teardrop - Gluing a ceiling joist

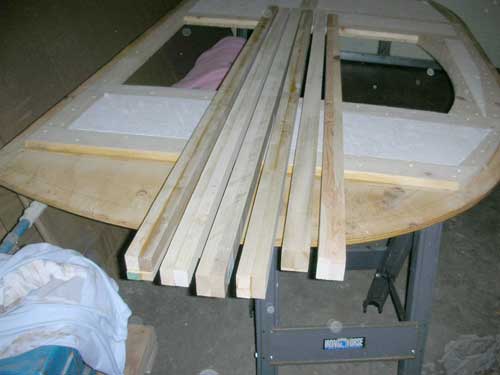

I finished six of the ceiling joists so far, most of them sometime during 2007. Teardrop - set of six ceiling joists

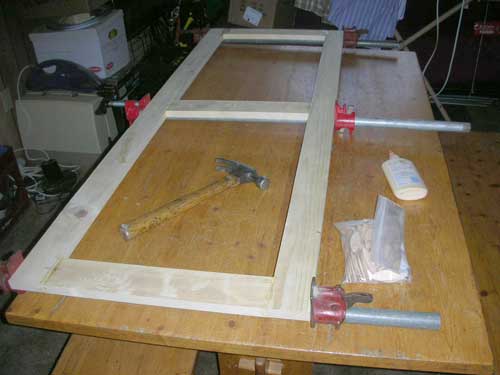

The upper and lower bulkhead vertical walls will be framed/insulated like the exterior wall with 1/8" plywood on either side. This is the glue-up of the upper wall. Teardrop - upper bulkhead wall frame

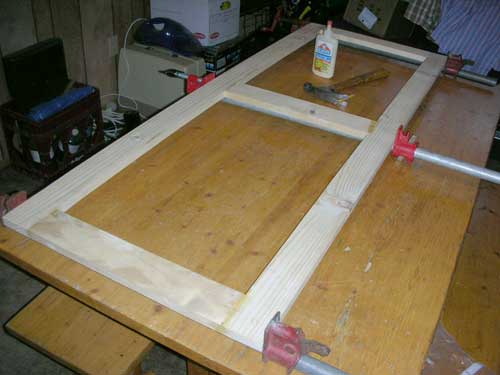

Both frames were glued together with biscuit joinery. This is the glue-up of the lower wall. (11/29/2008) Teardrop - upper bulkhead wall frame
